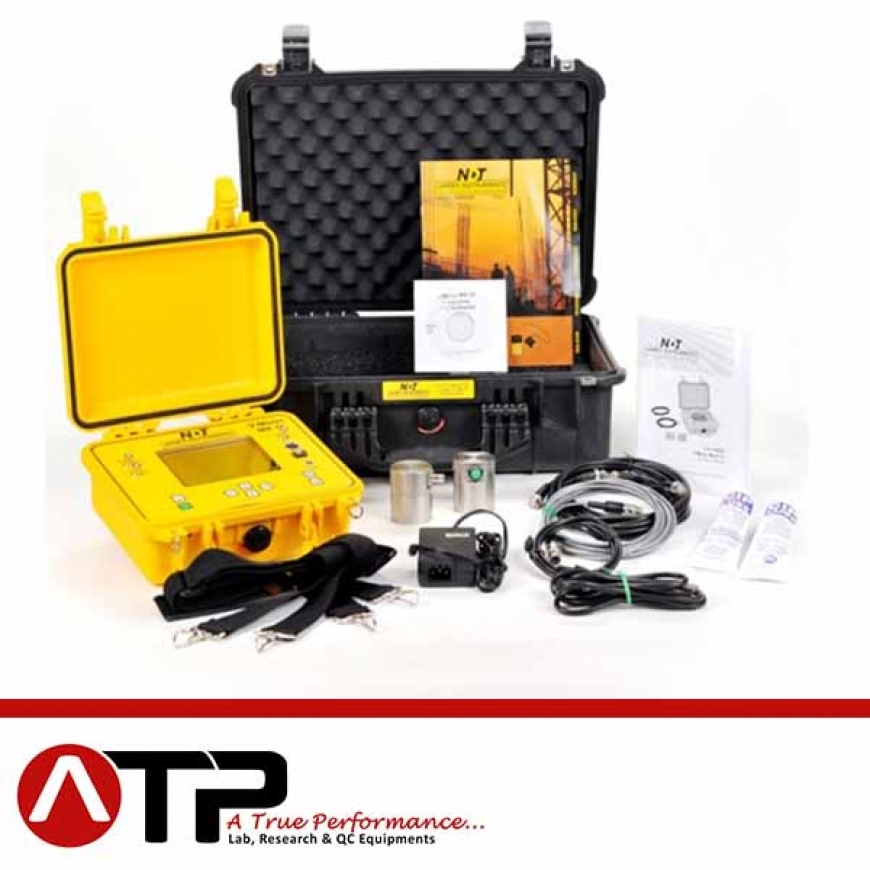

التراسونیک بتن NDT James

Frequency range:

24 to 500 kHz, based on transducers selected.

Receiver sensitivity:

250 micro volts, between 30 kHz and 100 kHz.

Receiver input impedance:

approximately 100 k Ohms.

Transit time measurement:

0.1 to 6553.5 microseconds, direct digital display.

Measurement accuracy:

0.1 microseconds.

Transmitter output:

pulse 1000/500V, 2 microseconds.

Transmitter pulse group rate:

selectable 1, 3 or 10.

Gain Selection:

1, 5, 10, 25, 50, 100, 250, 500

Battery:

14 Volt. 4-10 hours continuous use (Lithium Ion).

Display:

320 by 240; backlit for daylight use.

Storage:

1800 plus readings

Software:

Windows XP compatible.

Temperature:

0° – 50°C

Instr. Weight:

2.75 Kg

Dimensions:

114.3mm x 223.5mm x 267mm
