Temperature measurement -10°C to 150°C
-
Temperature unit °C or °F
-
Humidity operating 30 à 80% Rh max
-
Penetration time Up to 999 minutes
-
Overflow indicator Visual and audible
-
Range 0 to 75mm
-
Accuracy ±0.05mm
-
Results in memory 10

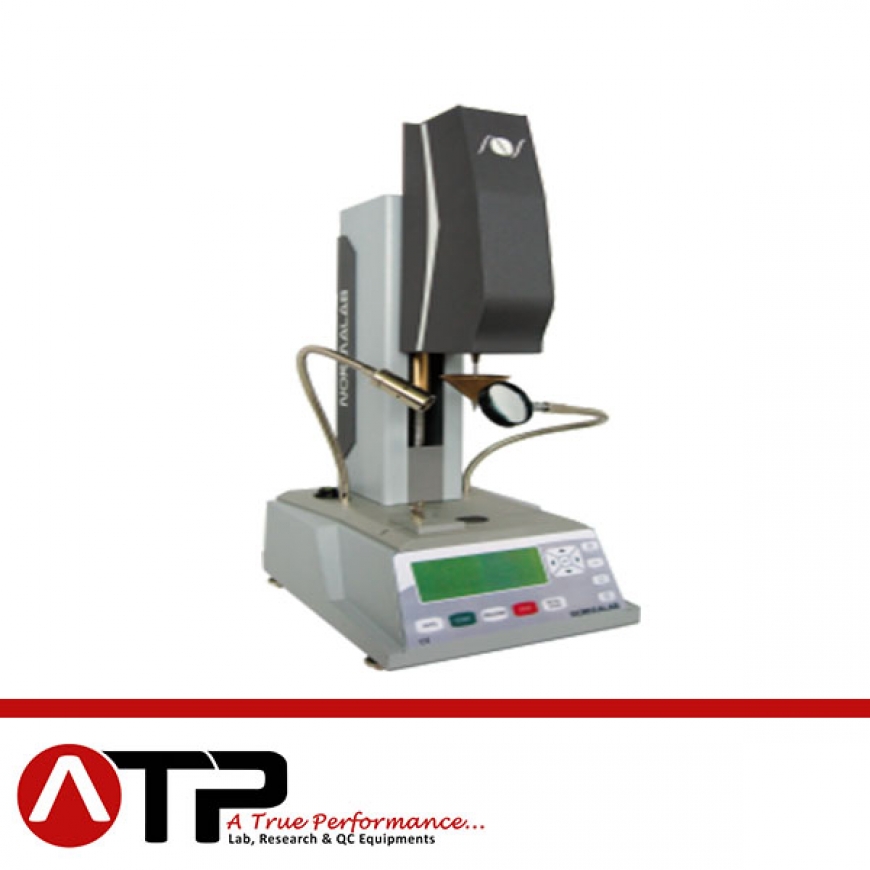

Automatic Penetrometer
|
Scope This test method covers determination of the penetration of semi-solid and solid bituminous materials |
|||
|
|||
Holder for accessories, magnifying lens and low voltage illuminator, centering guide with screw and nut, power cord, set of 2 fusibles, RS232C output, accessories for automatic level detection for conductive sample comprising probe cable, mini grip & test probe and instruction manual. |
- 4 speeds (3 downwards / 1 upward)
- 4 programmable positions
- Flexible LED lamp and magnifying glass
- Precise stepper motor with accuracy of 0.05 mm
- Automatic surface detection (option)
- Programmable penetration time
- Optoelectronic detection of penetration depth
Supplied with :
- Flexible magnifying lens
- Flexible LED lamp
- Needle holder
- 1 power cable
Description
Additional information
| Model |
NPN TECH |
|---|---|
| Standard |
ASTM D217, EN 1426, ASTM D5, ASTM D937, ASTM D1321, IP 49, IP 50, IP 179, IP 310, DIN 51579, DIN 51580, DIN 52010, ISO 2137, ISO 3992, ISO 6298, ASTM D1403 |
| Manufacture By |
Normalab |
