| Model |
02.056 |
|---|---|
| Standard |
EN 1426, ASTM D5 |
| Manufacture By |
ATP |

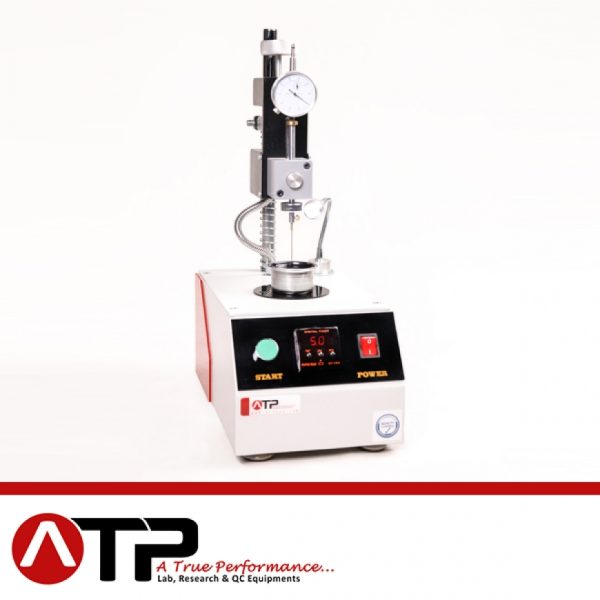

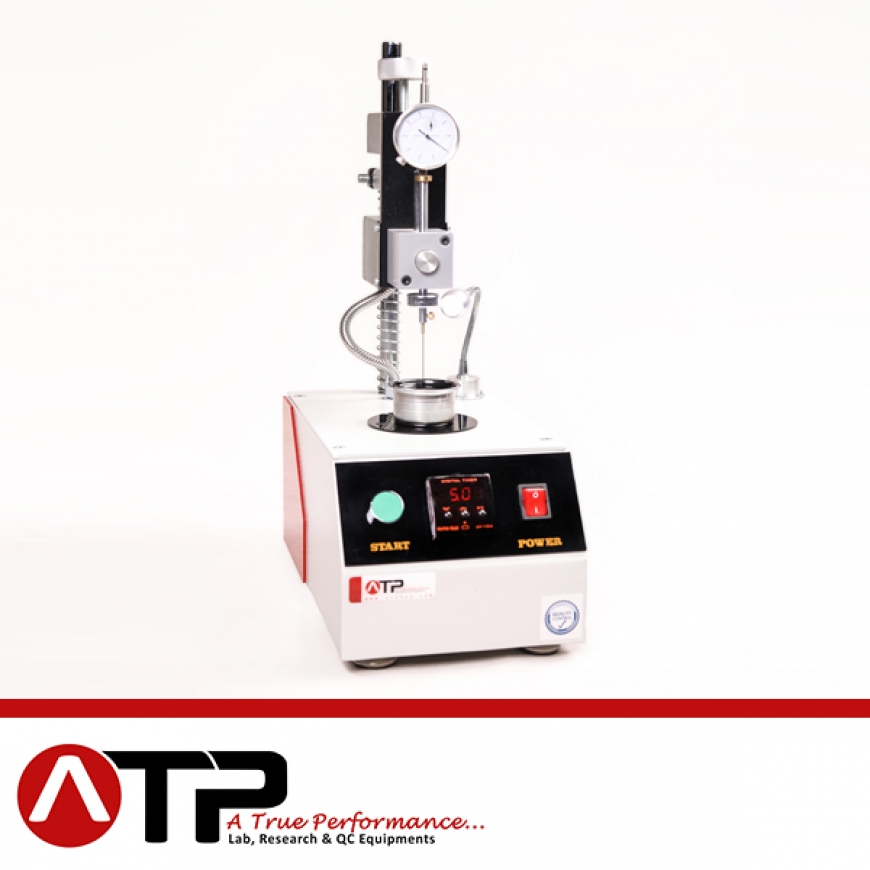

Semi-Automatic Digital Penetrometer
Semi-Automatic Digital Penetrometer
Used to determine the consistency of a bituminous sample under fixed conditions of load, time and temperature. The penetration is expressed in distance of tenths of millimeters vertically penetrated by a standard needle. The unit has a magnetic controller device with electronic digital programmable timer that automatically releases the plunger head and ensures free falling of the needle during the 5-seconds test.
The penetrometer is supplied with stop and release push button, automatic zero set, micrometer adjustment, weight of 50 g. penetration needle, sample cup dia. 55×35 mm.
Power supply: 220 V 1 ph 50/60 Hz
Dimensions: 220x380x490 mm.
Weight: 16 kg
