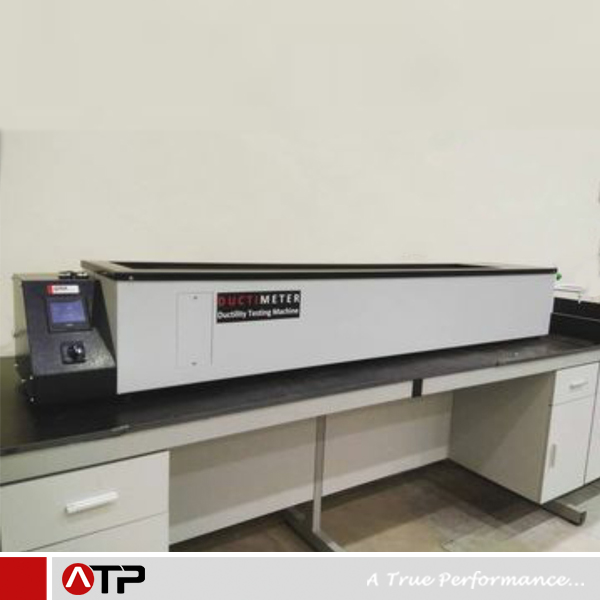

Digital Ductilometer

Used to determine the bituminous ductility, that is the distance to which a briquette of molten bitumen can be extended under controlled conditions, before breaking. The Ductilometer basically consists of a moving carriage travelling along guide ways. The carriage is driven by an electrical motor, inside a large tank is fitted with digital thermostat, immersion electric heater, cooling coil for cold water circulation and pump unit.

The ductilometer can accept up to 3 specimens simultaneously.
Supplied complete except for the briquette mould and base plate that must be ordered separately.

Power supply: 230V 1 ph 50 Hz 750 W
Dimensions: 2300x350x400 mm
Weight: 80 kg
