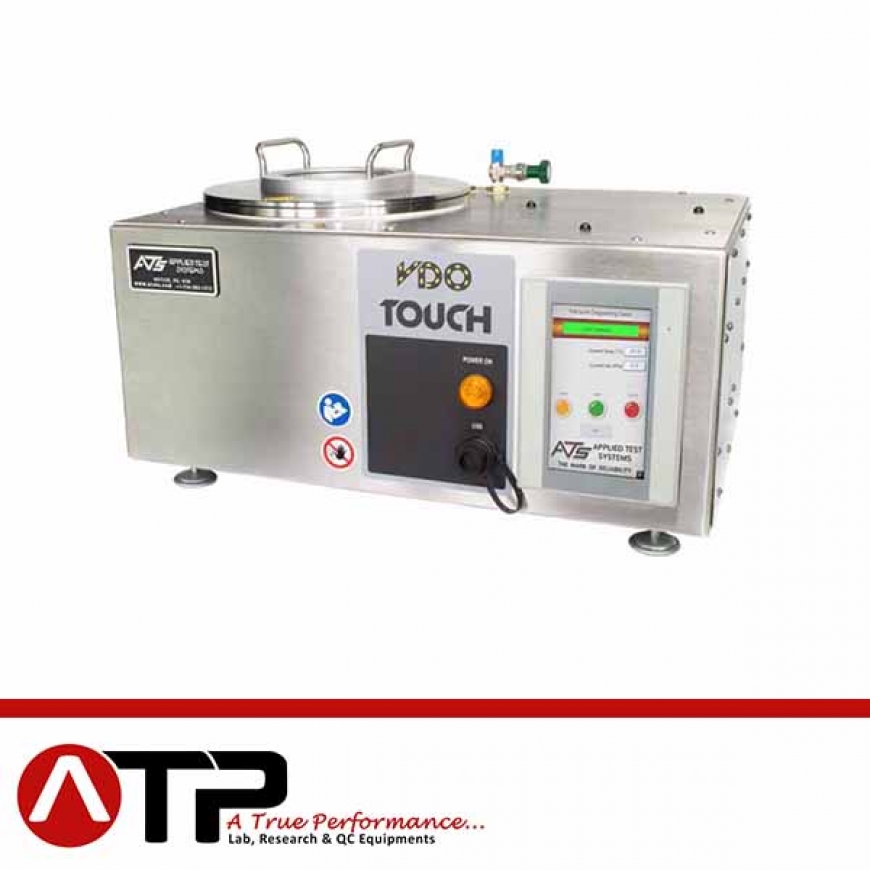

Vacuum Degasing Oven

The Vacuum Degassing Oven (VDO) is designed to remove air bubbles created during the in-service oxidative aging of asphalt binder by the PAV.

We are excited to introduce the NEXT generation of our Vacuum Degassing Oven, the VDO Touch! We’ve kept the same great features our VDO was known for and incorporated some new ones to enable the user even more freedom. Designed to meet AASHTO R28, ASTM D6521, and EN 14769 test standards.

What’s new?

Large touch screen controller
Programmable Vacuum Time, Temperature, and Soak times
Network ready
When connected to a network, access the VDO screen with an APP and operate remotely from a Smart Phone, Tablet, IPad, IPhone, or another PC
USB Port on the rear to perform software upgrades
English, German, Spanish, French, Italian, Russian, Mandarin, and Arabic language options

VDO Touch Features

Includes touch screen controller with front panel user interface with easy to use step-thru operation.
Bench top unit with integral vessel/oven design with top opening
CE certified options available
Network Ready: Remote capabilities: With APP view and control PAV with smart phone, tablet, IPad, IPhone, or other PC
Platinum RTD temperature measurement
Includes 4 eight ounce containers and a specimen removal tool

Electrical Requirements: 230 VAC, 1 Ph, 50/60 Hz, or 115 VAC, 1Ph, 60Hz, 10A.

Features

Part of our CE Approved Asphalt Bitumen/Binder Testing Line
Benchtop unit
Languages available: English, French, German, Spanish, Italian, Chinese, and Arabic
Touchscreen controller with easy to use, step-through instructions
Leveling legs
NIST traceable RTD for temperature measurement, with an accuracy of +/- 1°F
Over temperature protection
Pressure gauge indicated in both Kpa and Hg
USB port on front of unit for upgrades and data downloads
Programmable temperature, soak time, and vacuum time
Self-contained automatic vacuum systems
VNC Viewer – Remote monitoring capabilities with smart phone or tablet app.
